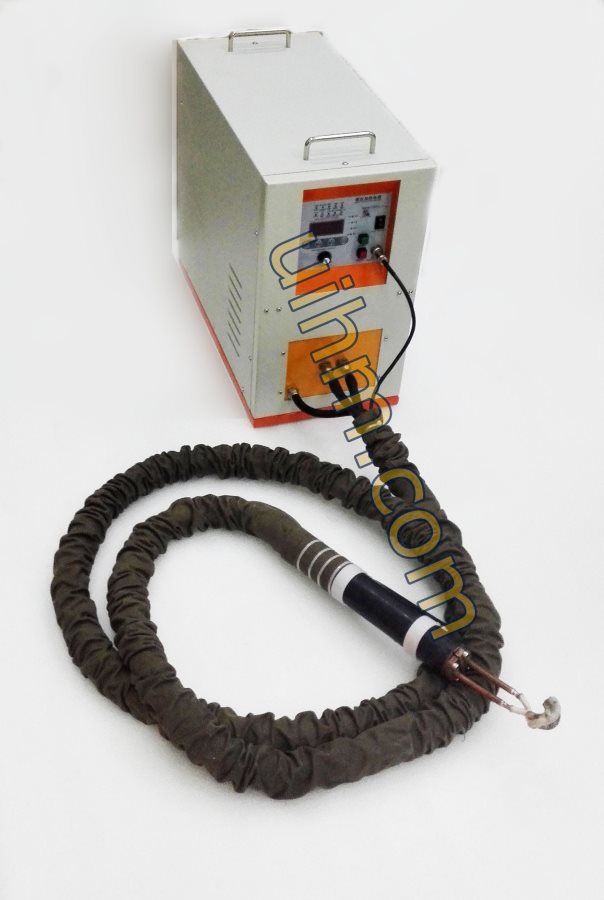

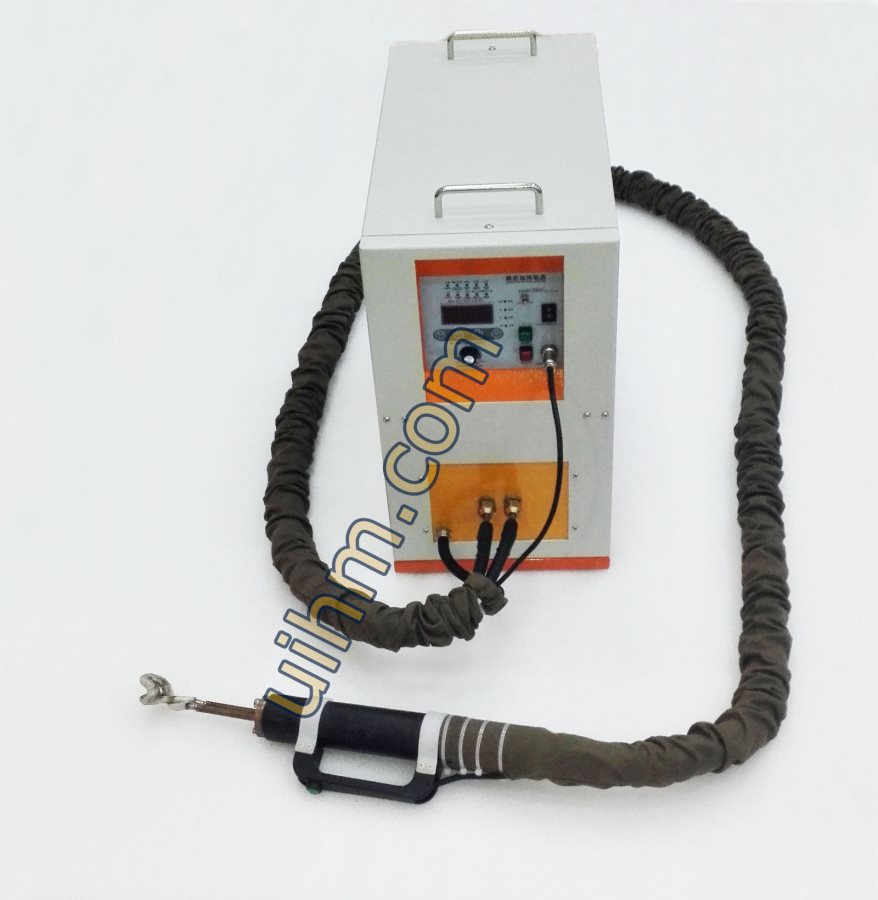

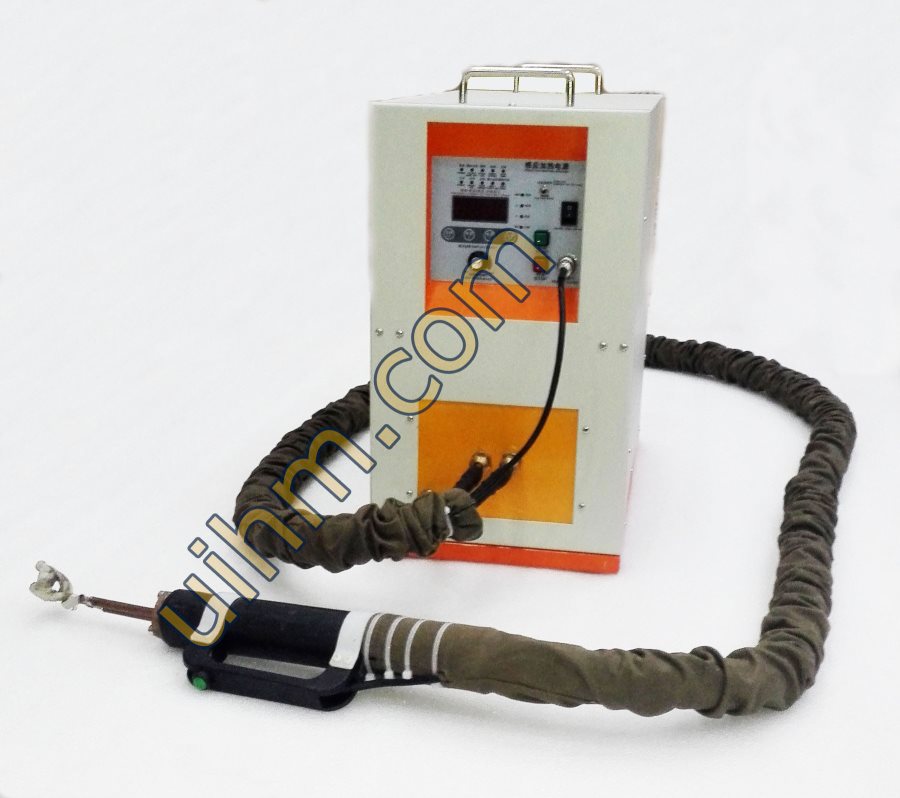

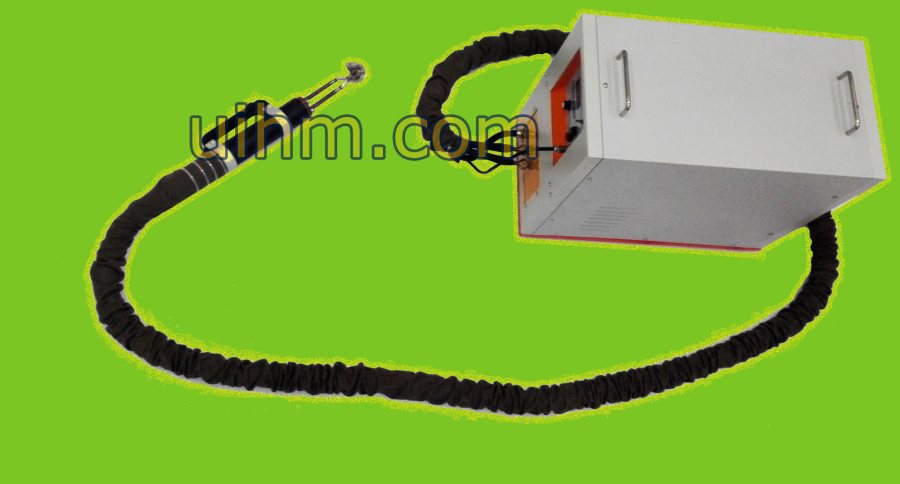

handheld UM-20A-UHF induction heating machine

Type: UM-20A-UHF
Parameter: Download PDF Catalog
Tags: handheld, UM, 20, UHF, induction heating, machine
Attn:The photos in this page are reference only, and the actual delivered goods shall prevail!

Parameters of (UHF) Ultra-High Frequency Induction Heating Machines:

Type	Output Power	Input Current	Absorbed Power	Max. Frequency	Input Voltage	Cooling Water	Normal Size (cm)	Net Weight(kg)
UM-05AB-UHF	6KVA	23A	5KW	1.5MHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 2-5 L/Min, <40 ºC	Main: 43 X 35 X 13 Head: 23 X 10 X 12	10+6
UM-06A-UHF	6.5KVA	27A	6KW	1.1MHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 5 L/Min, <40 ºC	58 X 26 X 50	23
UM-06AB-UHF	6.5KVA	27A	6KW	1.1MHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 5 L/Min, <40 ºC	Main: 52 X 24 X 50 Head: 14 X 14 X 10	17+6
UM-10A-UHF	12KVA	15A	10KW	900KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 ºC	58 X 26 X 50	36
UM-10AB-UHF	12KVA	15A	10KW	900KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 ºC	Main: 52 X 24 X 50 Head: 58 X 30 X 42	26+22
UM-20AB-UHF	23KVA	30A	20KW	600KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 ºC	Main: 55 X 25 X 45 Head: 49 X 26 X 37	29+24
UM-30AB-UHF	34KVA	45A	30KW	500KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 ºC	Main: 55 X 25 X 45 Head: 49 X 26 X 37	32+25
UM-40AB-UHF	45KVA	61A	40KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 7.6 L/Min, <40 ºC	Main: 65 X 34 X 55 Head: 51 X 30 X 45	49+28
UM-60AB-UHF	66KVA	90A	60KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 10 L/Min, <40 ºC	Main: 65 X 34 X 55 Head: 51 X 30 X 45	52+30
UM-80AB-UHF	80KVA	120A	80KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 20 L/Min, <40 ºC	customized	customized
UM-100AB-UHF	110KVA	150A	100KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 25 L/Min, <40 ºC	customized	customized
UM-120AB-UHF	130KVA	180A	120KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 30 L/Min, <40 ºC	customized	customized
UM-160AB-UHF	180KVA	240A	160KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 30 L/Min, <40 ºC	customized	customized
UM-200AB-UHF	210KVA	300A	200KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 40 L/Min, <40 ºC	customized	customized
