UM-20AB-UHF Induction Heating equipment

Parameters of (UHF) Ultra-High Frequency Induction Heating Machines:

Type	Output Power	Input Current	Absorbed Power	Max. Frequency	Input Voltage	Cooling Water	Normal Size (cm)	Net Weight(kg)
UM-05AB-UHF	6KVA	23A	5KW	1.5MHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 2-5 L/Min, <40 ºC	Main: 43 X 35 X 13 Head: 23 X 10 X 12	10+6
UM-06A-UHF	6.5KVA	27A	6KW	1.1MHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 5 L/Min, <40 ºC	58 X 26 X 50	23
UM-06AB-UHF	6.5KVA	27A	6KW	1.1MHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 5 L/Min, <40 ºC	Main: 52 X 24 X 50 Head: 14 X 14 X 10	17+6
UM-10A-UHF	12KVA	15A	10KW	900KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 ºC	58 X 26 X 50	36
UM-10AB-UHF	12KVA	15A	10KW	900KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 ºC	Main: 52 X 24 X 50 Head: 58 X 30 X 42	26+22
UM-20AB-UHF	23KVA	30A	20KW	600KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 ºC	Main: 55 X 25 X 45 Head: 49 X 26 X 37	29+24
UM-30AB-UHF	34KVA	45A	30KW	500KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 ºC	Main: 55 X 25 X 45 Head: 49 X 26 X 37	32+25
UM-40AB-UHF	45KVA	61A	40KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 7.6 L/Min, <40 ºC	Main: 65 X 34 X 55 Head: 51 X 30 X 45	49+28
UM-60AB-UHF	66KVA	90A	60KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 10 L/Min, <40 ºC	Main: 65 X 34 X 55 Head: 51 X 30 X 45	52+30
UM-80AB-UHF	80KVA	120A	80KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 20 L/Min, <40 ºC	customized	customized
UM-100AB-UHF	110KVA	150A	100KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 25 L/Min, <40 ºC	customized	customized
UM-120AB-UHF	130KVA	180A	120KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 30 L/Min, <40 ºC	customized	customized
UM-160AB-UHF	180KVA	240A	160KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 30 L/Min, <40 ºC	customized	customized
UM-200AB-UHF	210KVA	300A	200KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 40 L/Min, <40 ºC	customized	customized

Applications

• Quick quenching
• Hardening or quenching for small depth
• Brazing for tiny workpiece
• Heating tiny workpiece

UM-20AB-UHF

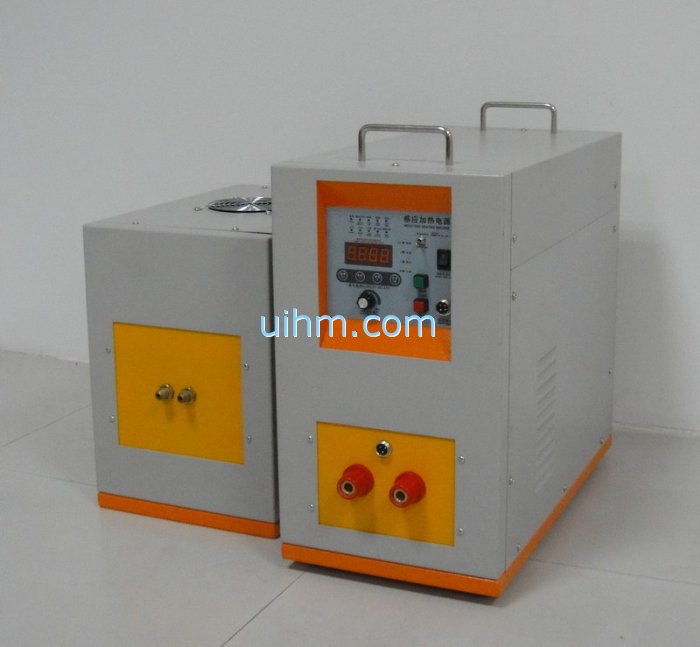

UM-20AB-UHF induction heating machine

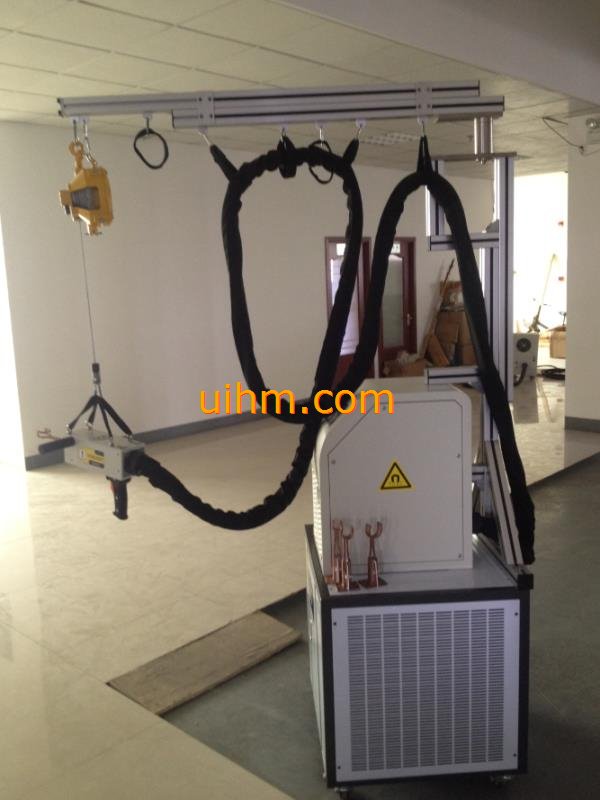

handheld flexible induction coil

UHF induction heater with handheld flexible induction coil for brazing work

UHF induction heater with handheld flexible induction coil

IGBT MF, RF, HF and UHF induction heating equipment is widely used in the following industries:

(A) heat treatment industry (hardening, annealing, tempering and stress relieving):
1. Hardware tools high-frequency hardening heat treatment, such as; vise, hammer, locking pliers, wrenches, screwdrivers
2. Variety of steam, motorcycle parts high-frequency hardening heat treatment, such as: crankshaft, connecting rod, piston pin, camshaft, valves, various gears within the gearbox, a variety of fork, all kinds of spline shaft, drive axle, each high-frequency hardening heat treatment of the kinds of small shafts, crank pin, rocker arm, rocker shaft
3. Hydraulic components, such as: a rotor of the plunger piston pump, rotor pump, various valves on the other to the heat treatment of high-frequency hardening of the shaft, the gear pump gears, etc.
4. Automotive, machinery and equipment, electric tools, gear, bearing high-frequency hardening heat treatment
5. Variety of woodworking tools, such as: ax, planer quenching
Wheels of a variety of automotive, motorcycle, marine and engineering equipment, machine axis IF quenching, large parts of the annealing, tempering and stress relieving.
(B) the welding industry (brazing)
1. Welding of various turning tools, planer, milling machining and cutting tools
2. Welding of various diamond tools, such as: welding diamond saw blades, diamond drill
3. Various shaped drill head column Button Bits, drill Yan briquette, riveting rod drill carbide brazed
4. Various shearer teeth welding, various digging machine cutter welding
5. Various mechanical welding tool
Air conditioners, refrigerators, refrigeration system brass brazing, pipe brazing, as well as brass and aluminum tubes brazed
(C) forging industry
1. Heat pier variety of standard parts, non-standard parts, pieces of copper, steel and aluminum parts casting and forging
2. Hardware tools such as pliers, wrenches before forging heating
3. Solder with solder tail caudal peduncle cone drill head forging
4. A extrusion molding on the stainless steel container.
(D) the precious metal smelting industry
The sample melting of steel, iron, copper, aluminum and other tests, as well as gold, silver and other precious metals smelting

UM Series press feed screw barrel induction heating equipment, the main application industries:

1, the plastics and rubber industry, such as: plastic film blowing machine, drawing machine, injection molding machines, blow molding machines, blow molding machines, plastic machines, molding machines, bag making machine, pipe production line, plate production line, granulating machine, plastic pressure machine, foaming machine rubber extruder, vulcanizing machine, cable extrusion machine, etc.
2, the pharmaceutical and chemical industry, such as: medicine dedicated infusion bag, plastic equipment production lines, chemical industry liquid heating duct
3, the energy, the food industry, such as: crude oil pipeline heating, food machinery, such as Roasting Machine need for electric heating equipment
4, the building materials industry, such as: gas pipeline production line, plastic pipe production line, PE plastic rigid flat net, geotextile mesh unit, automatic hollow molding machine, PE honeycomb board production line, single-double wall corrugated pipe extrusion production line, composite cushion film crew rigid PVC pipe, foam core pipe production line, PP extrusion transparent sheet production line, extruded polystyrene foam pipe, PE stretch film plant
5, printing equipment, dry heat
6, other similar industry heating

UM pipeline heating, preheat and post-weld treatment induction heating equipment applications and applicable industry:

1, heated crude oil pipeline (crude oil pipeline installation, delivery of crude oil extraction, petrochemical, pipeline transportation of natural gas)
2, sheet metal, pressure vessels, generating sets and other large, shaped workpieces before welding preheat and post-weld heat treatment, stress relief, etc., applicable machining industry, petrochemical, aerospace, boiler, shipbuilding, metallurgy, iron and steel, construction of railway bridges, gas cylinders and pressure vessel manufacturing, vehicle manufacturing, the construction of the nuclear power unit

Download UIHM catalog of induction heating machine
