Vertical Induction Hardening Machine UM-CNC-900- IHM
Views Send Enquiry
- Type: UM-CNC-900- IHM
- Parameter: Download PDF Catalog
- Attn:The photos in this page are reference only, and the actual delivered goods shall prevail!
Induction Heating Machine: 40KW~160KW
Item | Description |
Max. Hardening Diameter | 400 mm |
Max. Hardening Length | 900 mm |
Inverter Motor Rotate Speed | 1500 R/Minute |
Reducer Rotate Speed | 300 R/Minute |
Moving Speed | 1~30mm/Second |
Descent Speed | 120mm/Second |
Cooling Type | Steeping / Hydrojet |
Human-computer interface | 24 Color |
PLC | Japan MITSUBISHI |
Quenching Machine Power | 2000 W |
Input power | 220 VAC / 50Hz / Single Phase |
Net Weight (kg) | 1000 KG |

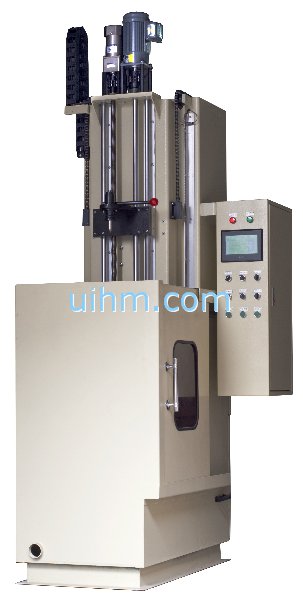

Vertical Induction Hardening Machine UM-CNC-900- IHM

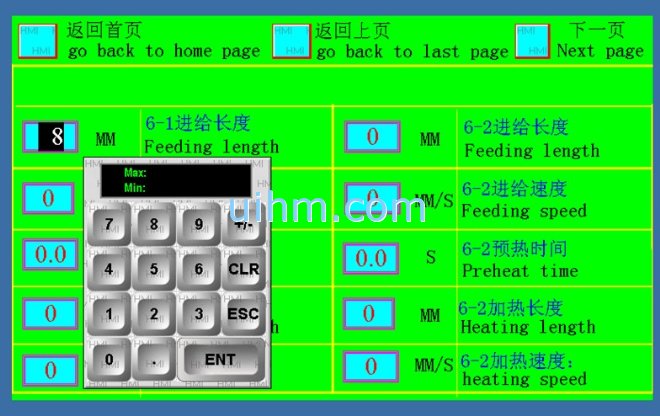

UM-CNC Induction Hardening Machine PLC control panel

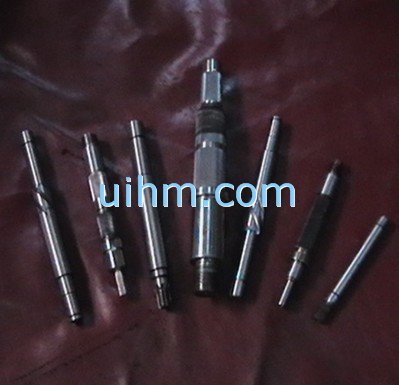

axle (shaft) for induction hardening

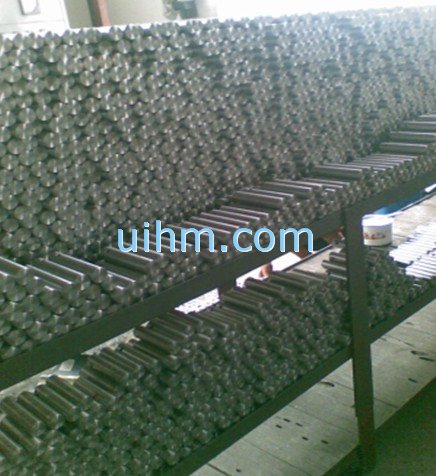

shaft (axle) for induction hardening
