Induction heating for Plastic Reflow With Catheter Tubing
Views Send Enquiry
Objective Heat a metal braid in a plastic catheter tube to 250°F (121.1ºC) so that another catheter tube can be bonded to it.
Material 0.05” (1.27mm)diameter catheter tubes, some with a metal braid, ceramic rod
Temperature 250°F(121.1ºC)
Frequency 306kHz
Equipment 6KW induction heating system equipped with a remote workhead with one 1.2 μF capacitor
• An induction heating coil designed and developed specifically for this application.

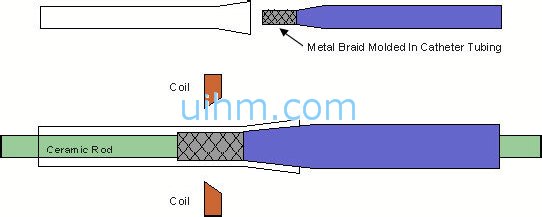

Process A single turn helical coil is used to heat the metal braid for plastic reflow. To maintain the correct inside diameter of the tubing. A ceramic rod is inserted through the tubing. Heat is applied for 3.5 seconds to reach 250°F (121.1ºC). The metal braid melts the plastic and creates a bond.
Results/Benefits Induction heating provides:
• Controlled rapid application of heat
• Consistent, repeatable results
• Energy efficient
PDF: Induction heating for Plastic Reflow With Catheter Tubing
